jQuery Slideshows With the Cycle Plugin

jQuery is an awesome framework that is both flexible and robust. If you haven’t done so already, check out Jeffrey Way’s amazing jQuery for Absolute Beginners.

jQuery also has an outstanding developer community with loads of plug-ins that you can use to expand jQuery’s capabilities while simplifying the process of development. The jQuery Cycle plugin allows developers to quickly and easily create a slideshow out of anything contained within a given div element. However, this is more than just your grandmother’s slideshow fade plugin. The jQuery cycle plugin comes with a vast array of transition effects for you to use.

Getting jQuery and the plugin

Of course, to follow along with this tutorial, you need to download all the proper plugins and jQuery if you don’t already have it. You can download jQuery at jQuery’s website, and the cycle plugin downloads can be found here.

For the purpose of this demonstration, I am using the development version of jQuery. However, as most developers would agree, I suggest using the production version of jQuery for the final release.

The version of the cycle plugin that I am using also is best suited for development use. As described on its site, the cycle plugin comes in two varieties. One, which includes the core components and the fade effect only, and a full version which includes all of the plugins shown on their site.

Step 1: Setting up the HTML

Since we are focusing on a very simple UI, the HTML and CSS layout will be pretty staightforward. You can follow my example by the placing the following HTML in your code.

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
 <title>JQuery Cycle Plugin Sample/title>
 <link rel="stylesheet" type="text/css" media="screen" href="screen.css" />
</head>
<body>

<div id="myslides">
 <img src="http://themeforest.s3.amazonaws.com/47_cycle/images/capitol.jpg" />
 <img src="http://themeforest.s3.amazonaws.com/47_cycle/images/flowers.jpg" />
 <img src="http://themeforest.s3.amazonaws.com/47_cycle/images/countryscene.jpg" />
</div>

</body>
</html>

As you can see, I have set up a really simple layout which includes a simple enclosed div which is called ‘myslides’. It is important that you wrap all of tour images you want in the slideshow within a div element, we’ll see why later in the tutorial.

Step 2: The CSS

Next, of course, is the CSS for the layout of both the images and the div that contains those images for your slideshow.

body {
	background: rgb(50,50,50);
}

#myslides {
	width: 370px;
	height: 220px;
    padding: 0;
    margin:  0 auto;
}

#myslides img {
    padding: 10px;
    border:  1px solid rgb(100,100,100);
    background-color: rgb(230,230,230);
    width: 350px;
    height: 200px;
    top:  0;
    left: 0
}

So, what are we doing here? The key thing to note here is to make sure that the div element which contains your images (in this case, #myslides) has a set width and height. In my example, I have set the width and height of the myslides element to equal the width and height of the images plus the images padding.

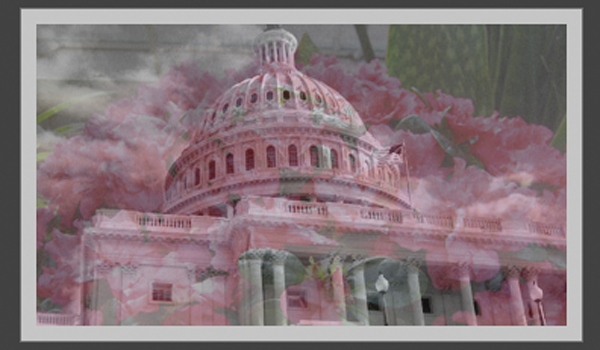

After setting up the HTML and CSS as I have shown, you should have something that looks similar to the screenshot below.

Step 4: Placing the JS

We now need to include the latest version of the jQuery library, as well as the required cycle plugin, to make this effect work. Beneath the css include, place the following code to include the required javascript files.

<script type="text/javascript" src="js/jquery-1.3.js">/script>
<script type="text/javascript" src="js/jquery.cycle.all.js">/script>

Next, we place our own script which makes the effect run.

$(document).ready(function(){
	$('#myslides').cycle();
});

The script above starts out just as most jQuery scripts do. It begins with telling the browser to start the following function once the document is loaded. On the second line, the script calls the myslides div element and passes it to a cycle method in the from the plugin. That’s it! You reload the page, you should see the default fade transition in between your photos.

Customization

As mentioned earlier, the cycle plugin is more than just your basic fade transition slideshow. You can take the plugin further by customizing the way the slideshow behaves. I am going to show how you can change the transition and speed of how long each slide is presented before the next transition.

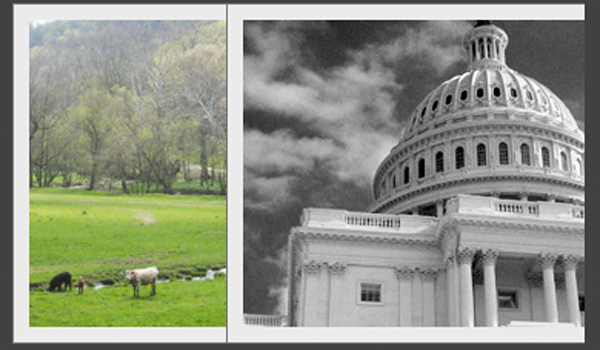

Customizing the plugin is quite simple. If we want to change the transition from the default fade to one called cover, we start out with the following code inside the document ready function.

$('#myslides').cycle({
	fx: 'cover'
});

Now, say we want to make that ‘cover’ transition to happen a bit more quickly. In jQuery, 1000 equals 1 second. So, if we want the transition to take place in a half of a second, we apply the following code.

$('#myslides").cycle({
	fx: 'cover',
	speed: 500
});

One more thing that we might want to do, is decrease the time it takes for each transition to start. So, we call up the timeout parameter as demonstrated below.

$('#myslides').cycle({
	fx: 'cover',
	speed: 500,
	timeout: 2000
});

We now have a nifty slideshow that might be useful for in a header of a portfolio website giving quick samples of a photographers work. I have just a few of the customizations that can be made to the cycle plugin. Check out the jQuery cycle plugin site to check out more options. You can check out their site here.

The Complete Code

Your HTML file now should look something like this.

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
 <title>JQuery Cycle Plugin Sample/title>
 <link rel="stylesheet" type="text/css" media="screen" href="screen.css" />
 <script type="text/javascript" src="js/jquery-1.3.js">/script>
 <script type="text/javascript" src="js/jquery.cycle.all.js">/script>
 <script type="text/javascript">
$(document).ready(function(){
	$('#myslides').cycle({
		fx: 'cover',
		speed: 500,
		timeout: 2000
	});
});
 </script>
</head>
<body>

<div id="myslides">
 <img src="http://themeforest.s3.amazonaws.com/47_cycle/images/capitol.jpg" />
 <img src="http://themeforest.s3.amazonaws.com/47_cycle/images/flowers.jpg" />
 <img src="http://themeforest.s3.amazonaws.com/47_cycle/images/countryscene.jpg" />
</div>

</body>
</html>

Conclusion

We’ve seen how a simple plugin can add simplicity and ease to the setup and customization of a slideshow. Keep in mind that this plugin is not limited to images, it pulls all child elements of the div element you assign i, whether it is images, headings, or paragraphs.
